Mosquito Studio HH

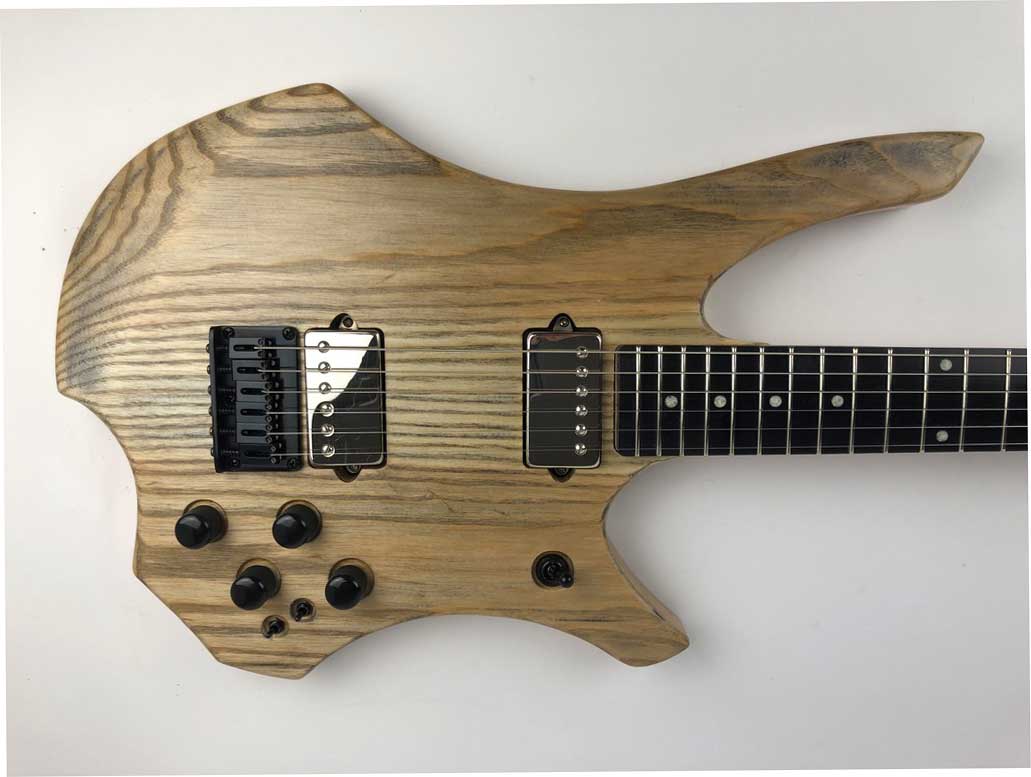

The Mosquito Studio HH is a Private Stock Munson built for players who want range, clarity and control without losing the feel of a handmade instrument.
Built around an Ash body, flame maple neck and a pair of hand-wound Bare Knuckle humbuckers, this guitar is designed to move easily between rich clean tones, punchy drive and heavier rock voices. It is not a generic HH guitar. The switching system gives the player a broad tonal palette while keeping the instrument grounded, playable and direct.
This is a finished Munson instrument, available now as part of our Private Stock collection.
Built for versatility
At the heart of the Mosquito Studio HH is a pair of custom hand-wound Bare Knuckle humbuckers with Alnico V magnets.
They deliver a full, articulate clean sound with enough weight and authority for driven blues, hard rock, grunge, punk, classic metal and progressive tones. The result is a guitar with real width: powerful when you need it, but still clear, responsive and musical.
A wider tonal range
The Mosquito Studio HH uses a passive switching system designed to give the player more control over the two humbuckers.
The layout includes:
Main controls
2 volume controls
2 tone controls
3-way pickup selector
2 mini toggles
2 push-pull tone controls
The switching allows access to humbucker, single-coil and parallel voices from each pickup, with additional phase and series options available through the push-pull controls.
This gives the guitar a broad range of usable sounds, from familiar HH power to leaner single-coil textures and more complex combined pickup voices.
Rather than adding technology for its own sake, the system is designed to make the guitar more useful in the studio, on stage and at home.
Ash, flame maple and visible grain
The Ash body has been finished in our Bare Naked finish, allowing the grain and character of the wood to remain visible.
At Munson, we prefer finishes that let the material speak. This guitar uses traditional nitrocellulose lacquer, chosen for its feel, appearance and ability to age naturally over time.
The flame maple neck is finished in satin nitrocellulose, giving it a smooth, fast feel while still protecting the wood. A dual-action truss rod allows precise adjustment.
Crafted in Britain
The Mosquito Studio HH was designed and made in Britain by Munson Guitars.
As part of our Private Stock collection, this is a completed instrument rather than a future commission. It gives you the chance to own a finished Munson build without waiting for a made-to-order slot.
Specifications
Model
Munson Mosquito Studio HH
Body
Wood: Ash
Finish: Bare Naked
Backplate: Ash
Neck
Wood: Flame Maple
Fretboard: Black Diamond Richlite
Scale Length: 25.5” / 648mm
Radius: 9.5” / 241.3mm
Truss Rod: Dual action, neck adjustable
Thickness: 0.73” / 18.58mm at 1st fret; 0.87” / 22.21mm at 12th fret
Finish: Satin nitrocellulose
Fretboard
Frets: 22 medium
Fret size: 2.4mm wide x 1.2mm high
Inlays: 6mm round paua shell
Nut: GraphTech XL
Electronics
Pickups: Bare Knuckle humbucker set
Controls: 2 volume, 2 tone
Switching: Switchcraft 3-way selector, 2 mini toggles, 2 push-pull tone controls
Capacitor: 0.022uF tone capacitor
Jack: 0.25” mono
Hardware
Tuners: Gotoh SG381-MG-T, black
Bridge: Gotoh GTC102 hardtail, black
Knobs: Black knurled
Case
Standard padded gig bag
Switching Guide
Neck Tone Push-Pull
Neck pickup phase
Down: In phase
Up: Reverse phase
Bridge Tone Push-Pull
Neck and bridge relationship
Down: Parallel
Up: Series
Front Mini Toggle — Neck Pickup
Position 1: Series humbucker
Position 2: Single coil — north
Position 3: Parallel humbucker
Rear Mini Toggle — Bridge Pickup
Position 1: Series humbucker
Position 2: Single coil — south
Position 3: Parallel humbucker
Like this guitar, but want your own version?
The Mosquito Studio HH is available now as a Private Stock instrument.
If you like the idea but want different woods, pickups, hardware, finish or switching, we can build a made-to-order Mosquito around you.
